AUDAC EPA252 audio amplifier 2.0 channels Black

Dual-channel, Class-D, 2×250 W, SNR 90 dB, THD 0.1%, 20-20000 Hz

Description
Product Spec

Description

This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode).

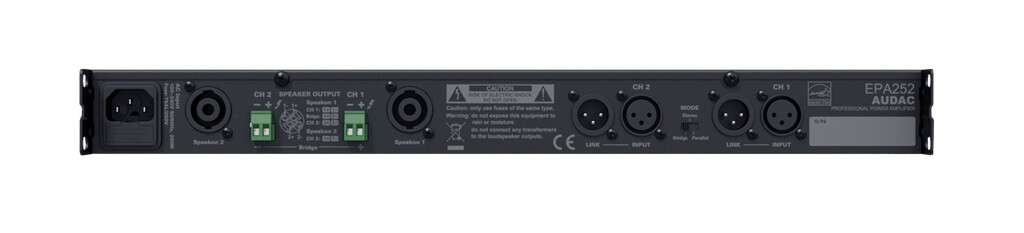

Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.

Additional information

Amplifier class	D
Total Harmonic Distortion (THD)	0.1%
Signal-to-Noise Ratio (SNR)	90 dB
Crosstalk (1kHz)	70 dB
Frequency range	20 – 20000 Hz
Product colour	Black
AC input voltage	100-240 V
AC input frequency	50 – 60 Hz
Width	482 mm
Depth	330 mm
Height	44 mm
Weight	4.4 kg
Operating temperature (T-T)	0 – 40 °C
Operating relative humidity (H-H)	0 – 95%
Audio output channels	2.0 channels
Material	Steel
Input impedance	12000 Ω
Speakers connectivity type	Clamp terminals
Sustainability certificates	ENERGY STAR
Power consumption (typical)	224 W
Power consumption (standby)	0.8 W
RMS power output per channel (4 Ohm)	250 W
RMS power output per channel (8 Ohm)	130 W
