AUDAC EPA254 audio amplifier 4.0 channels Black
Quad-channel, Class-D, 4×250 W, 20 – 20000 Hz, 90 dB, 4.7 kg
+ VAT
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode).

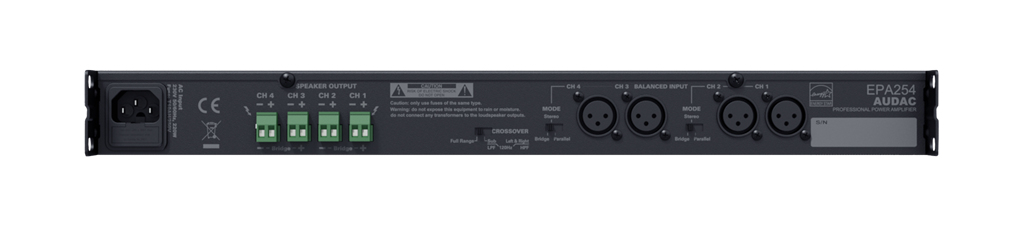

Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.
Description
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode).
Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.
Additional information
| Amplifier class | D |
|---|---|
| Total Harmonic Distortion (THD) | 0.1% |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| Crosstalk (1kHz) | 70 dB |
| Product colour | Black |
| AC input voltage | 230-240 V |
| AC input frequency | 50 – 60 Hz |
| Width | 482 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Audio output channels | 4.0 channels |
| Material | Steel |
| Input impedance | 12000 Ω |
| Speakers connectivity type | Clamp terminals |
| Sustainability certificates | ENERGY STAR |
| Power consumption (typical) | 438 W |
| Power consumption (standby) | 0.7 W |
| RMS power output per channel (4 Ohm) | 250 W |
| RMS power output per channel (8 Ohm) | 130 W |
