Cloud Electronics 46-80 audio mixer 20 – 20000 Hz Grey

4 Zone Integrated Mixer Amplifier, 10.2 kohms, 85 to 243 VAC, 47 to 63 Hz

Description
Product Spec

Description

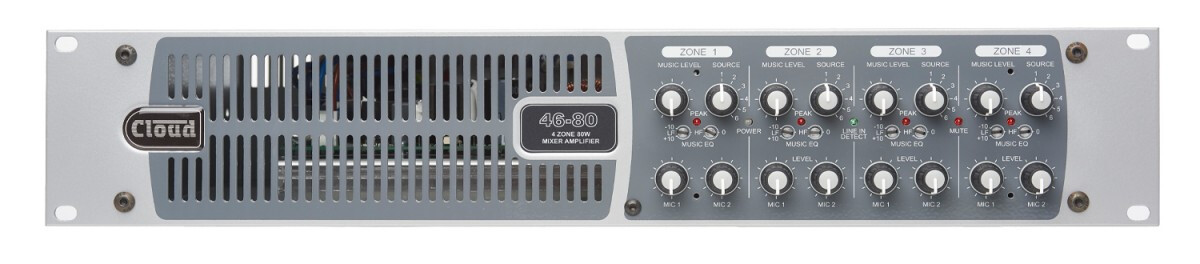

The Cloud 46-80 is a versatile, four-zone, rack-mounting (2U) audio mixing amplifier. It combines simple control of background music, microphone paging and power amplification for up to four zones in a single unit. It has extensive remote control facilities and is ideal for installation in premises such as pubs, bars, hotels, clubs, leisure and fitness centres, retail and other commercial premises, etc.

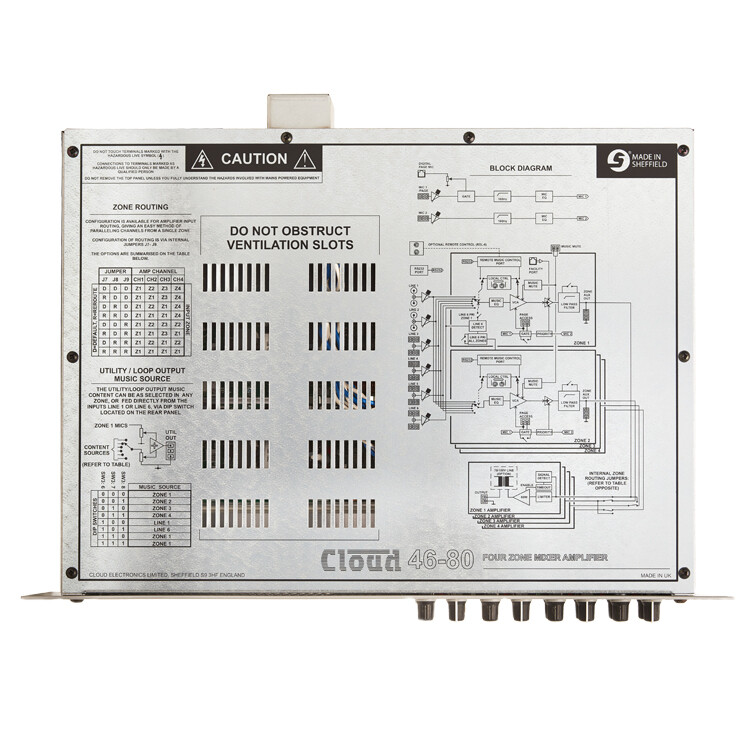

The 46-80 has four mono zone outputs, each driven by an 80 W (nominal rating) power amplifier stage: if less than four separate zones are required, the power stages may be paralleled by moving internal jumpers to permit dual stereo, quad mono or stereo + dual mono operation, with accordingly increased output power. The power stages have extensive protection circuitry to safeguard both the amplifier and loudspeakers.

Additional information

Frequency range	20 – 20000 Hz
Microphone Signal-to-Noise Ratio (SNR)	-127.2 dB
Line Signal-to-Noise Ratio (SNR)	-85.5 dB
Amplifier included	Yes
Amplifier output power	80 W
Input impedance	10200 Ω
Microphone input impedance	3300 Ω
Total Harmonic Distortion (THD)	0.05%
Built-in display	No
LED indicators	Mute, Peak, Power
Rack mounting	Yes
Rack capacity	2U
On/off switch	Yes
Microphone frequency response	100 – 20000 Hz
Line-in frequency response	20 – 20000 Hz
Product colour	Grey
Compliance certificates	CE
AC input voltage	85 – 265 V
AC input frequency	45 – 65 Hz
Phantom power	15 V
Width	482.6 mm
Depth	320 mm
Height	88 mm
Weight	5.5 kg
Package width	610 mm
Package depth	460 mm
Package height	200 mm
Package weight	8 kg
