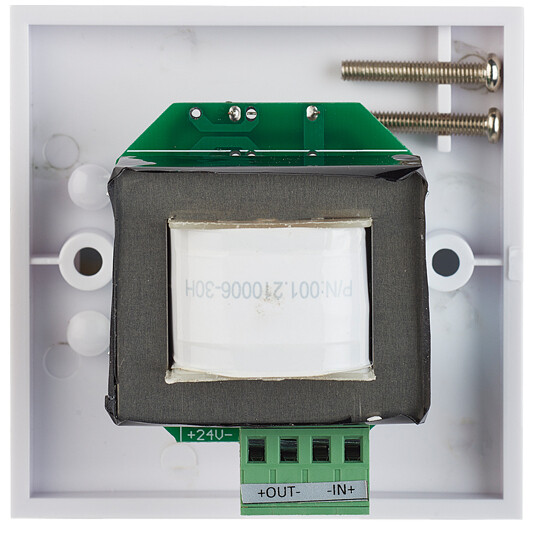

Cloud Electronics CVC-6 volume control Rotary volume control
100V Attenuated Volume Control
+ VAT
The Cloud CVC-6 100V Attenuated Volume Control is part of the Contractor Series and is designed to support the family of Contractor Series electronics such as the VMA Series of mixer amplifiers and VA Series of multichannel power amplifiers. Although this type of 100Vline attenuated volume controller can be used on any 100V line circuit.
The CVC-6 is designed to allow control over speaker circuits where the wattage reaches a maximum of 6W in total.
100V Line Attenuators offer the ability to precisely control audio level of individual 100V speakers or multiple 100V speakers in a daisy chain wiring configuration. All models feature a 10-step attenuation including OFF position and are 1Gang UK fixing.
Description
The Cloud CVC-6 100V Attenuated Volume Control is part of the Contractor Series and is designed to support the family of Contractor Series electronics such as the VMA Series of mixer amplifiers and VA Series of multichannel power amplifiers. Although this type of 100Vline attenuated volume controller can be used on any 100V line circuit.
The CVC-6 is designed to allow control over speaker circuits where the wattage reaches a maximum of 6W in total.
100V Line Attenuators offer the ability to precisely control audio level of individual 100V speakers or multiple 100V speakers in a daisy chain wiring configuration. All models feature a 10-step attenuation including OFF position and are 1Gang UK fixing.
Additional information
| Type | Rotary volume control |
|---|---|
| Mounting type | Wall-mounted |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Width | 87 mm |
| Height | 87 mm |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Frequency range | 20 – 20000 Hz |
| Maximum power | 6 W |
| Input operation voltage (max) | 100 V |
| Depth | 24 mm |
| Weight | 800 g |
| Package width | 90 mm |
| Package depth | 90 mm |
| Package height | 87 mm |
| Package weight | 1.06 kg |
| Package type | Box |
