Cloud Electronics CXA125 audio amplifier 2.0 channels Black

125W 1/2 Channel Digital DSP Amplifier

Description
Product Spec

Description

CXA125 power amplifier has been designed to provide configurable, consistent and reliable high performance audio power amplification for residential, commercial and entertainment applications.

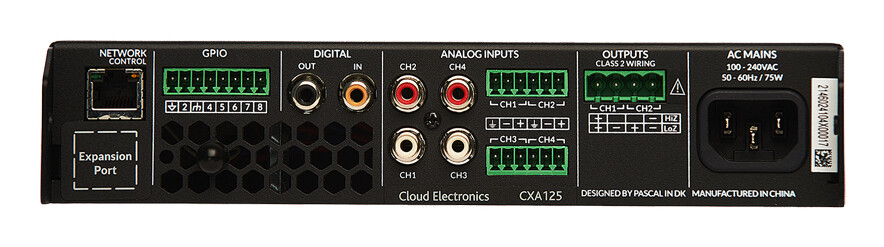

CXA125 amplifiers are half rack width, 1U format power amplifiers that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. They provide four analogue inputs, one stereo S/PDIF digital input, and either one or two outputs (Lo-Z mode), or one output (Hi-Z mode). CXA amplifiers also incorporate automatic power sharing technology that enables power to be shared proportionately as required between pairs of outputs in Lo-Z mode. CXA amplifier model output channel counts and power outputs are as follows:

Additional information

Peak power per channel	125 W
Connectivity technology	Wired
Product colour	Black
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Audio output channels	2.0 channels
AC (power) in	Yes
Ethernet LAN (RJ-45) ports	1
Rack capacity	1U
Power source type	AC
RMS power output per channel (1 Ohm)	125 W
RMS power output per channel (2 Ohm)	60 W
Digital audio coaxial in	1
Digital audio coaxial out	1
Certification	CE, UKCA, FC
