Cloud Electronics CXA2250 audio amplifier 4.0 channels Black
250W 2/4 Channel Digital DSP Amplifier
+ VAT
CXA2250 power amplifier has been designed to provide configurable, consistent and reliable high performance audio power amplification for residential, commercial and entertainment applications.

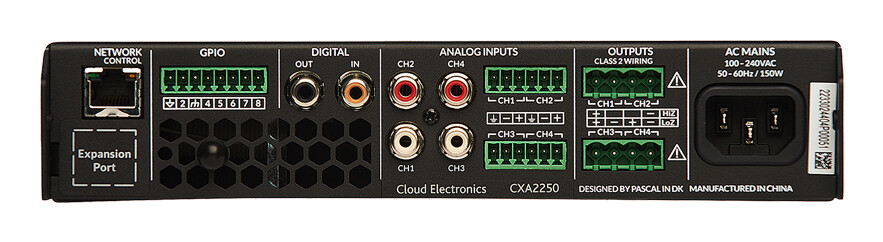

CXA2250 amplifiers are half rack width, 1U format power amplifiers that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. They provide four analogue inputs, one stereo S/PDIF digital input, and either two or four outputs (Lo-Z mode), or one or two outputs (Hi-Z mode). CXA amplifiers also incorporate automatic power sharing technology that enables power to be shared proportionately as required between pairs of outputs in Lo-Z mode. CXA amplifier model output channel counts and power outputs are as follows:
Description
CXA2250 power amplifier has been designed to provide configurable, consistent and reliable high performance audio power amplification for residential, commercial and entertainment applications.
CXA2250 amplifiers are half rack width, 1U format power amplifiers that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. They provide four analogue inputs, one stereo S/PDIF digital input, and either two or four outputs (Lo-Z mode), or one or two outputs (Hi-Z mode). CXA amplifiers also incorporate automatic power sharing technology that enables power to be shared proportionately as required between pairs of outputs in Lo-Z mode. CXA amplifier model output channel counts and power outputs are as follows:
Additional information
| Peak power per channel | 250 W |
|---|---|
| Connectivity technology | Wired |
| Product colour | Black |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Audio output channels | 4.0 channels |
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Rack capacity | 1U |
| Power source type | AC |
| RMS power output per channel (2 Ohm) | 125 W |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 1 |
| Certification | CE, UKCA, FC |
| RMS power output per channel (4 Ohm) | 250 W |
